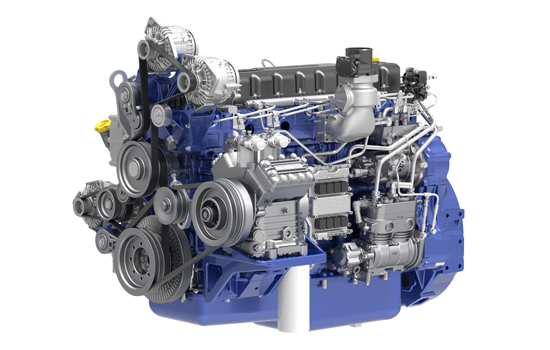

WP10H series bus engine
weichai bus engines, with the displacement ranging from 2.3L to 12L and the power ranging from 88kW to 338kW, meet Euro V, Euro VI and other emission standards, and are applicable to various buses with a length greater than 5m such as school buses, passenger buses, private buses, touring buses, public buses, hybrid electric buses, and special buses. These new-generation products (WP2.3N/WP2.5N/WP3N/WP4.1N/WP4.6N) are applicable to rural public buses, minibuses, long-nose school buses, high-end MPVs, European light buses, and characterized by high reliability, strong power, fuel saving and environmental protection.
🔥 9 items sold in last 3 hours
18 people are viewing this product right now
Your Payment is 100% Secure
Product parameters A
| Mode | Displacement （L） |
Number of valves per cylinder | Rated power/speed (kW/rpm) |
Maximum torque/speed (N·m/rpm) |
Min. fuel consumption on external characteristic curve (g/kW·h) |
Technical route | Application |
| WP10H375E62 | 9.5 | 4 | 276/1900 | 1800/1000-1400 | ≤195 | CR+DOC+DPF+Hi-SCR | Over 13.7m city bus 12-13.7m coach |
| WP10H400E50 | 9.5 | 4 | 294/1900 | 1800/1000-1400 | ≤195 | CR+SCR | Over 13.7m city bus 12-13.7m coach |
| WP10H400E62 | 9.5 | 4 | 294/1900 | 1900/1200-1300 | ≤195 | CR+DOC+DPF+Hi-SCR | Over 13.7m city bus 12-13.7m coach |
Product spectrum B
| model | Displacement ( L ) | Number of valves per cylinder | Rated power/speed (kW/rpm) |
Maximum torque/speed (N · m/rpm) |
External minimum fuel consumption (g/kW·h) |
Technical route | Suitable models |
| WP10H375E62 | 9.5 | 4 | 276/1900 | 1800/1000-1400 | 183 | CR+DOC+DPF+Hi-SCR | 12-13.7m passenger |
| WP10H400E62 | 9.5 | 4 | 294/1900 | 1900/1200-1300 | 183 | CR+DOC+DPF+Hi-SCR | 12-13.7m passenger |
Product advantages
- These products are manufactured on WEICHAI high-end platform and applied with the latest technological achievements, and meet Euro V and Euro VI emission standards.
- Comfort: The customized development of NVH ensures low noise and vibration.
- Adaptability: The centrally located intake manifold and flat appearance design ensure easy arrangement.
More safe and reliable
- The standard WCBS has a braking power up to 226kW.
- Oil change period of 100,000 km is optional.
Better economy
- The speed that can achieve minimum fuel consumption covers the whole working speed range.
- The WEICHAI ECU control system improves driver’s shift schedule and thus reduces fuel consumption.
High configuration
- The lightweight and modular design of the engine significantly reduces the weight of the engine and reduces the number of peripheral parts.
- The cone-shaped silencer ring is used to suppress the high-frequency noise of the turbocharger. In addition, the pre-injection noise reduction technology is applied.
WP10H series bus engine
